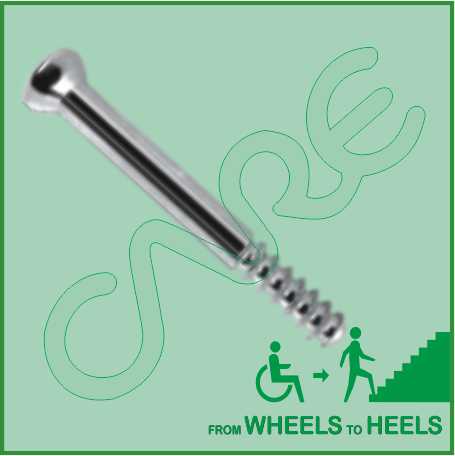

Shaft Screws For Low Cost Dynamic Compression Plate 4.5mm
| REF. NO. LENGTH
686.22 22 mm 686.24 24 mm 686.26 26 mm 686.28 28 mm 686.30 30 mm 686.32 32 mm 686.34 34 mm 686.36 36 mm 686.38 38 mm 686.40 40 mm 686.42 42 mm 686.44 44 mm 686.46 46 mm 686.48 48 mm 686.50 50 mm |
REF. NO. LENGTH
686.52 52 mm 686.54 54 mm 686.56 56 mm 686.58 58 mm 686.60 60 mm 686.64 64 mm 686.68 68 mm 686.72 72 mm 686.76 76 mm 686.80 80 mm 686.85 85 mm 686.90 90 mm 686.95 95 mm 686.100 100 mm |
| Technical Specification
Thread Diameter 4.5 mm Drill Bit for Threaded Hole 3.2 mm Drill Bit for Gliding Hole 4.5 mm Shaft Diameter 4.5 mm Core Diameter 3.0 mm Hexagonal Socket 3.5 mm Head Diameter 8.0 mm Thread Length 13 mm |
